BASIC INFO

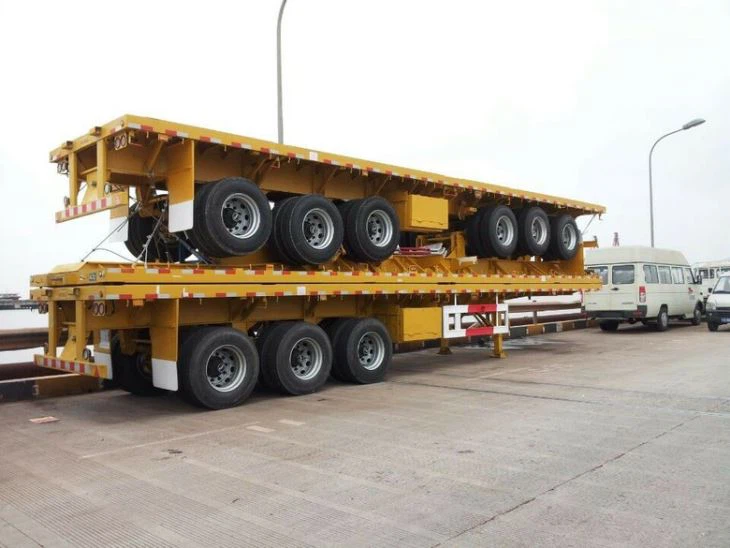

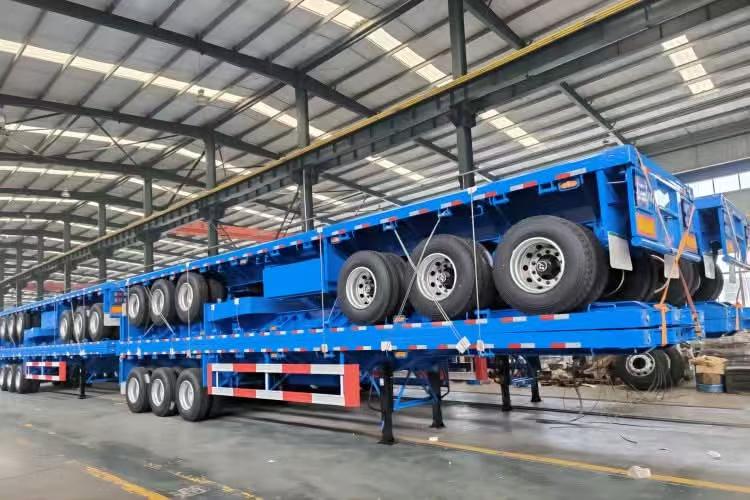

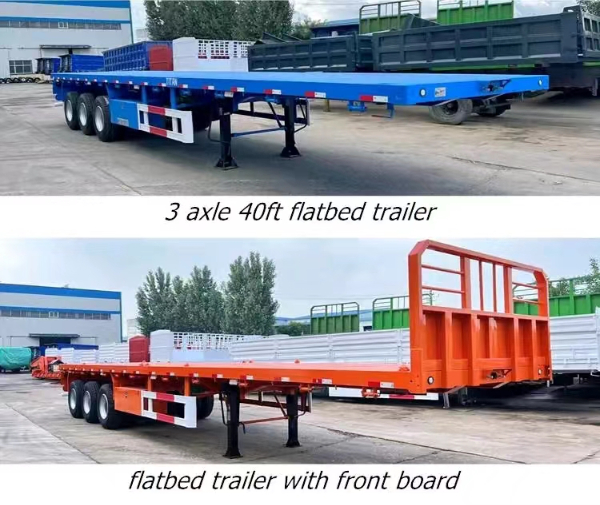

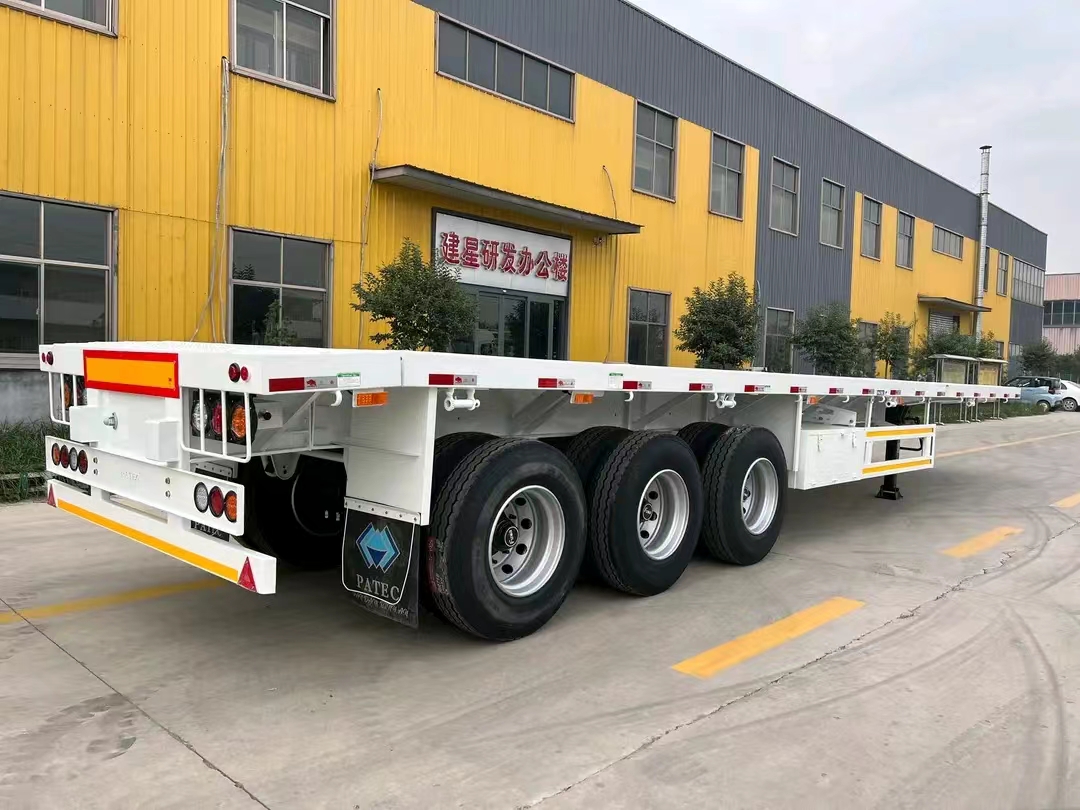

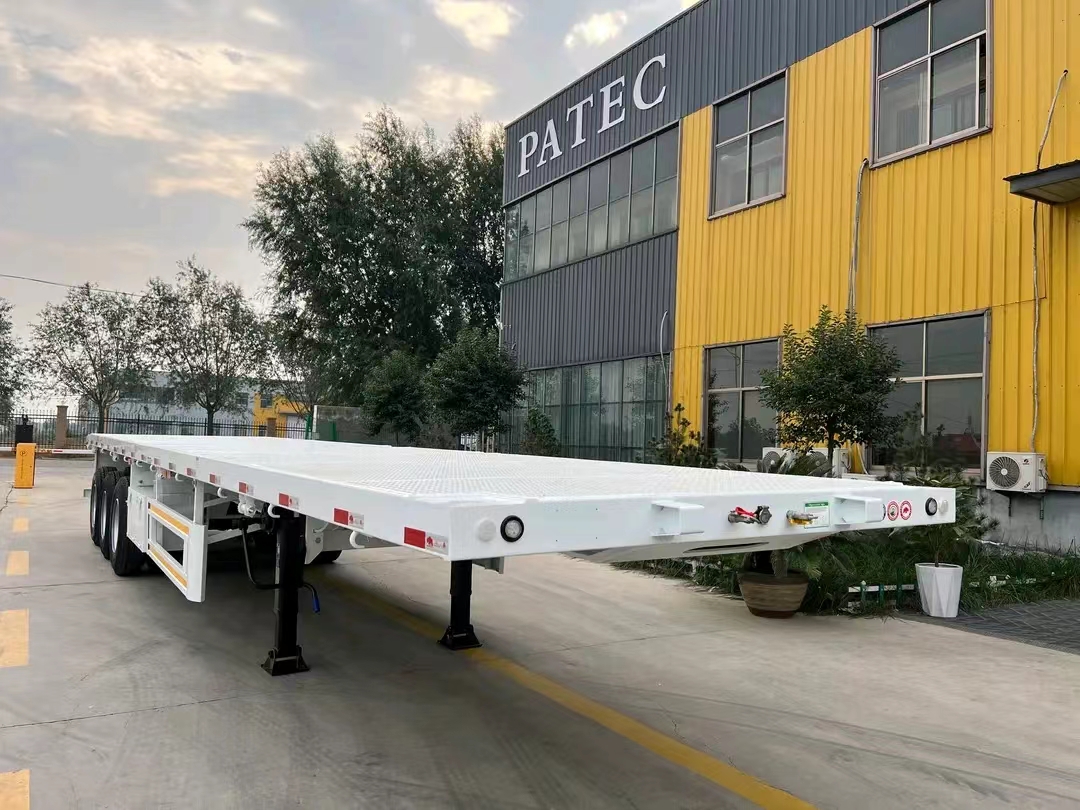

used sinotruk flat bed trailer for 40ft container
| used and new flat bed trailer SEMI TRAILER | |||
| item | unit | quantity | Specification |
| Overall Dimension | mm | 12500length*2500width*1575height | |
| Weight | kg | 7400 | |
| Axle | piece | 3 | FUWA Brand, 13 Ton loading capacity |
| Tyre | piece | 12 | 11.00R20-16R(Chengshan Brand) |
| Rim | piece | 12 | 8.0-20 |
| Leaf spring | set | 6 | 10pieces*90mm width*13mm thickness |
| Braking system | set | the whole vehicle | 2 line air braking system with air tank ,emergency relay valve,braking chambers and mechanical slack adjusters. |
Electrical system | set | 1 | 24 volt electrical system.7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors |
| Relay valve | whole vehicle | 1 | WABCO |
| Landing gear | pair | 1 | 28T |
| Kingpin | piece | 1 | 2" (3.5" )exchangeble (JOST) |
| Twist lock | piece | 12 | standard |
| Floor | 2.3mm checkered plate | ||
| Upper and lower wing plates | 14/16mm,using the highly quality Q345 steel, | ||
| Main beam | 500mm,webplate:8mm | ||
| Side beam | 16# channle steel | ||
| Cross beam | W type | ||
| Reflectors | Red triangle reflectors at the rear of the trailer and on side | ||
| Spare tyre carrier | piece | 2 | Hanging chain |
| Tool box | piece | 1 | 1.5M Length |
| Color | according to the customer | ||
| Delivery date | 25 working days after the deposit and the confirmation of the drawing. | ||
