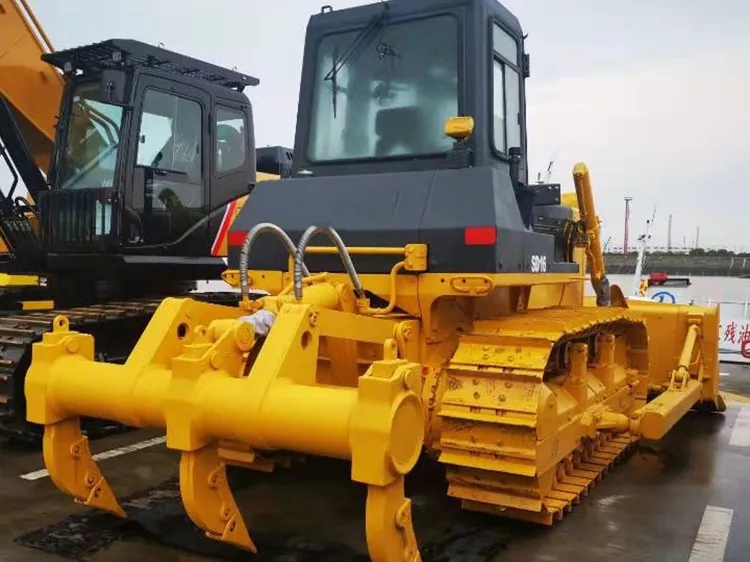

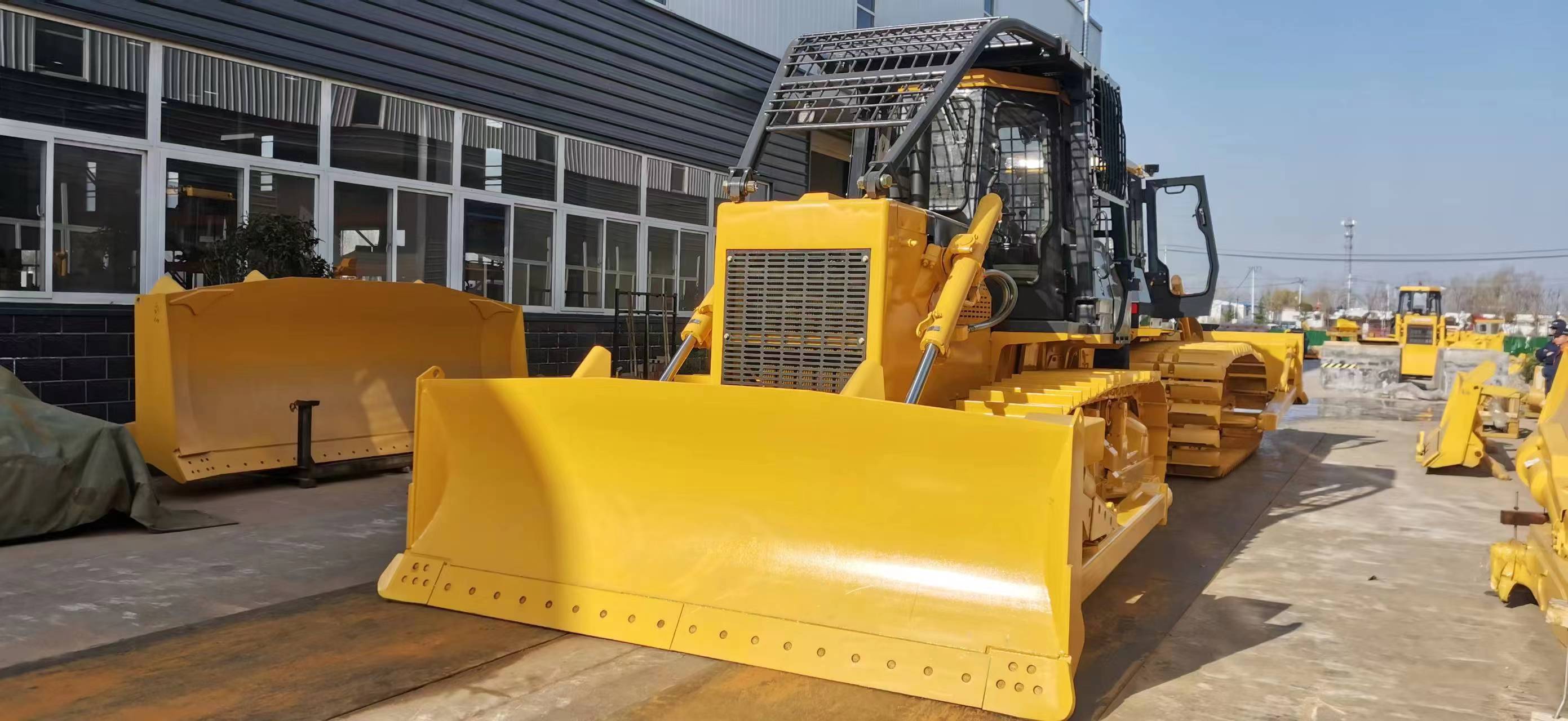

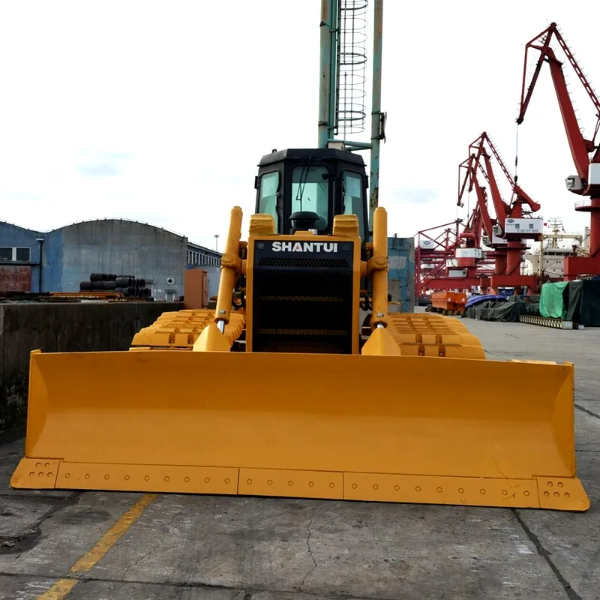

used shantui dozer
Year: 201-2022
Model: SD13,SD16,SD22,SD32
REFURBISHED BEFORE SHIPPING
MORE DETAILS:
L×W×H (Ripper not included) | mm | 5140×3388×3032 |
|
|
Operating weight (Ripper not included) | t | 17 |
|
|
Engine | - | Shangchai SC11CB184G2B1/ Weichai WD10G178E25 |
|
|
Rated power | kW/rpm | 120/1850 |
|
|
Gradeability | ° | 30 |
|
|
Blade type | - | Straight tilt blade U blade Angle blade |
|
|
Blade width | mm | Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 |
|
|
Dozing capacity | m3 | Straight tilt blade 4.5 U blade 5 Angle blade 4.3 |
|
|
Ma× drop below ground of blade | mm | 540 |
|
|
Lift height of blade | mm | 1095 |
|
|
Ripper type | - | Three-shank ripper |
|
|
Ripping depth of ripper | mm | 572 |
|
|
Lifting height of ripper | mm | 592 |
|
|
Number of carriers (each side) | - | 2 |
|
|
Number of track rollers (each side) | - | 6 |
|
|
Number of track shoes (each side) | - | 37 |
|
|
Width of track shoe | mm | 510 |
|
|
Track gauge | mm | 1880 |
|
|
Ground length and ground pressure | mm/MPa | 2430-0.067 |
|
|
Pitch | mm | 203.2 |
|
|
Forward speed | km/h | 0–3.29 |
|
|
0–5.82 |
|
|
0–9.63 |
|
|
Reverse speed | km/h | 0–4.28 |
|
|
0–7.59 |
|
|
0–12.53 |
|
|
