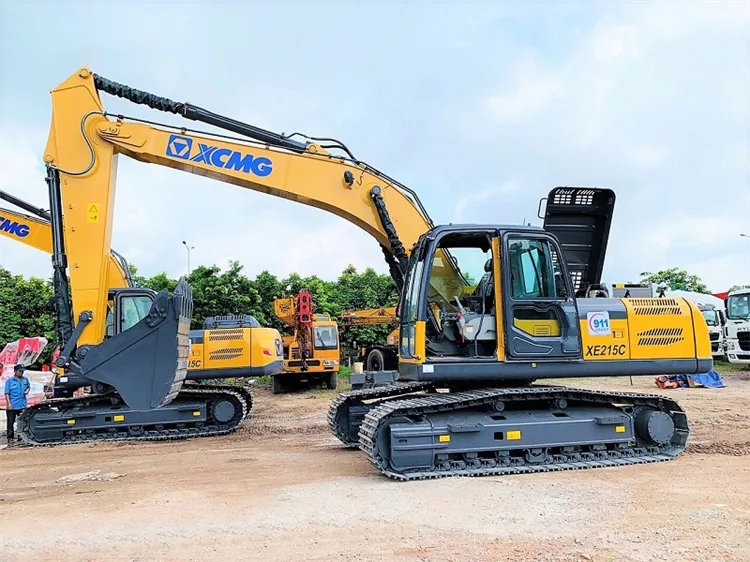

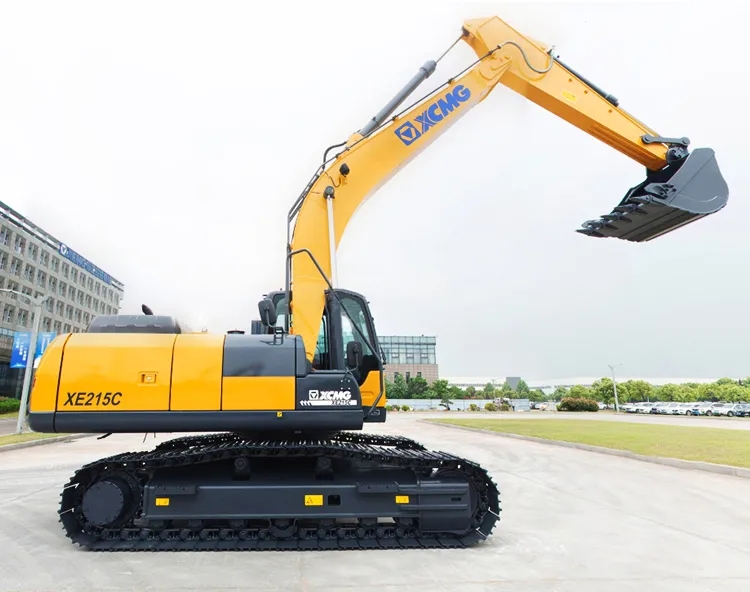

used xcmg excavator
Year: 2010-2022
Loading capacity: 15tons-30tons
Mode details:
Engine | Model | ISUZU CC-6BG1TRP |
Equipped
| Electronic fuel injection |
Four strokes |
Water cooling |
Turbo-charging |
Air to air intercooler |
No. of cylinders | 6 |
Output power | 128.5/2100 kW/rpm |
Torque/speed | 637/1800 N.m/rpm |
Displacement | 6.494 L |
Operation Weight | 21700 kg |
Bucket Capacity | 0.9—1.0 m 3 |
Main performance
| Travel speed(H/L) | 5.5/3.3 km/h |
Rotating speed | 13.3 r/min |
Gradeability | ≤35° |
Ground pressure | 47.2 kPa |
Bucket digging force | 149 kN |
Arm digging force | 111 kN |
Maximum traction | 184 kN |
Working scope
| Max. digging height | 9620 mm |
Max. dumping height | 6780 mm |
Max. digging depth | 6680 mm |
Excavation depth of 8 feet level | 6500 mm |
Max. vertical wall digging depth | 5715 mm |
Max. digging reach | 9940 mm |
Min. swing radius | 3530 mm |
