BASIC INFO

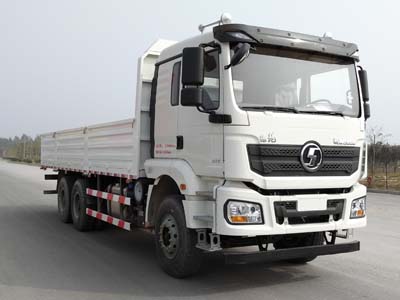

used shacman 6x4 cargo truck
Year: 2015-2022
Mileage: 30000-50000km
Loading capacity: 30tons
Mode details:
Max. running speed (km/h) | 77 | ||
Drive System | 6×4 | ||
Dimensions (L*W*H)(mm) | Overall | 9825×2490×3210 | |
Dump body | 7000 * 2326 * 600 | ||
Thickness (mm) | Bottom 3 , side 2 | ||
Approach / departure angle (°) | 16/17 | ||
Kerb weight (kg) | 10900 | ||
Total mass (kg) | 25000 | ||
Wheel base (mm) | 4325+1350 | ||
Overhang (F/R) (mm) | 1525/2625 | ||
Track width (F/R) (mm) | 1939 / 1800 | ||
Engine | WD615.50 (WEICHAI , Euro 2 ) | ||
Rated power | 290 hp | ||
Gearbox | 9JS119 (Fast gear) | ||
Clutch | 430 Diaphragm type | ||
Cab | F2000 Cabin with A/C &sleeper | ||
Axle | Front | 7.5 ton | |
Rear | 13 Ton double reduction-gear axle , final ratio4.8 | ||
Tyre (radial tire) | 12.00R20(10+1 spare tire) | ||
